Self Locking Knife Holders

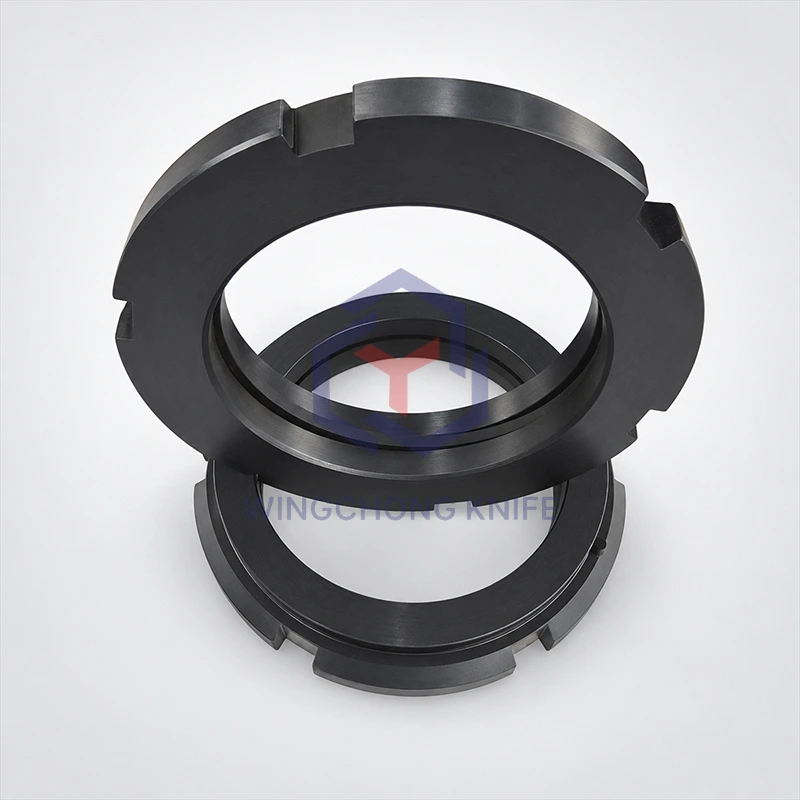

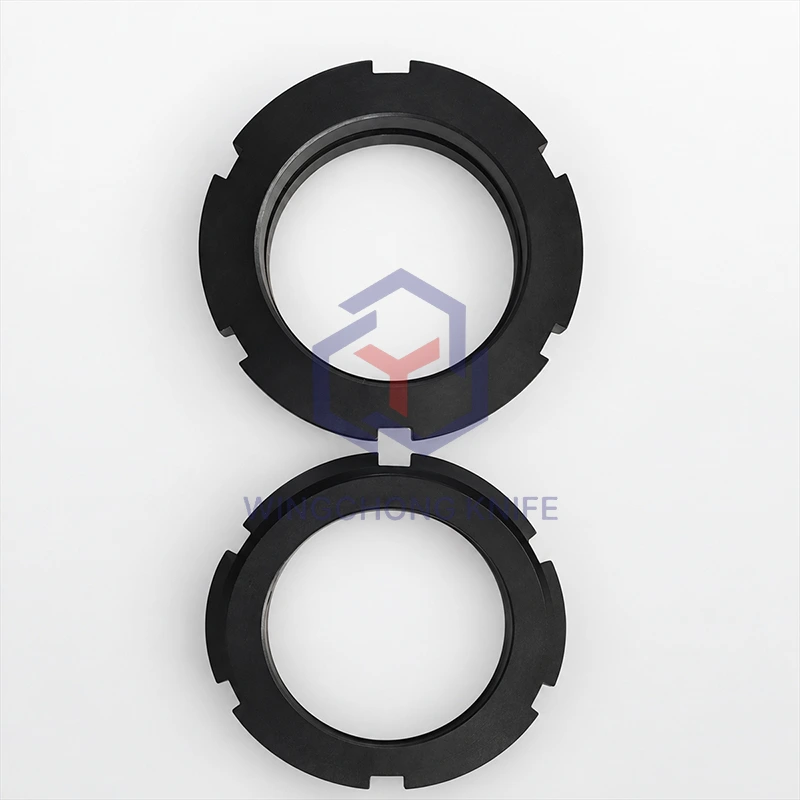

Self Locking Knife Holders are precision components designed for shear slitting systems, rewinders, slitter rewinders, slitting machines, and inspection equipment. They are used to securely mount dished knives on the upper knife shaft and maintain stable cutting pressure during operation.
Manufactured from high-strength special steel with a black oxide finish, the holders provide improved corrosion resistance and wear resistance for demanding industrial applications.
The holder features a self-locking ball mechanism that engages automatically when the machine starts, helping maintain secure knife positioning even when the shaft locking mechanism has not been fully engaged. This design provides an additional level of operational safety and reliable knife retention.

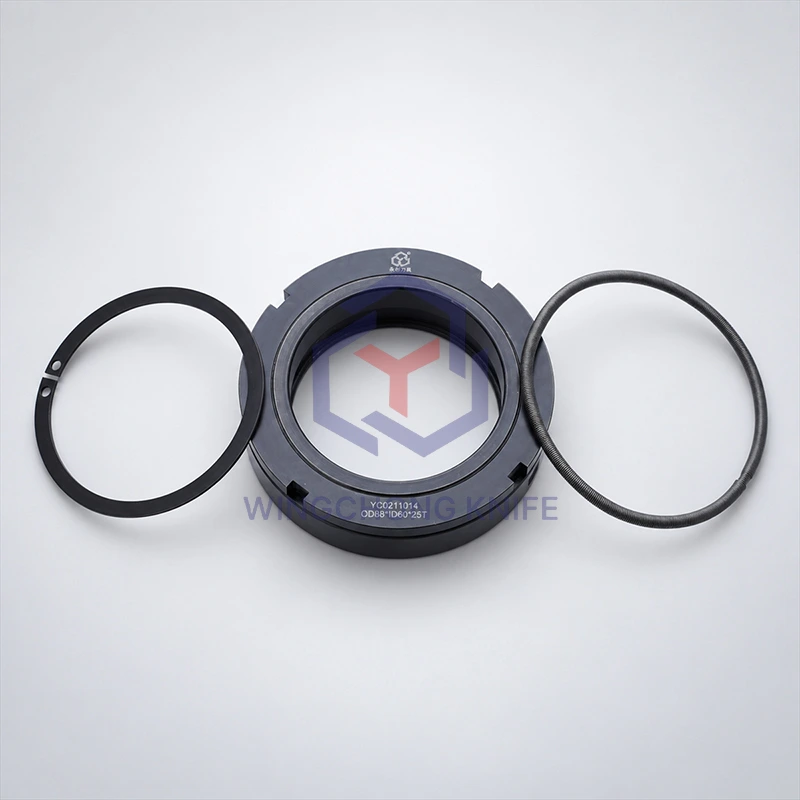

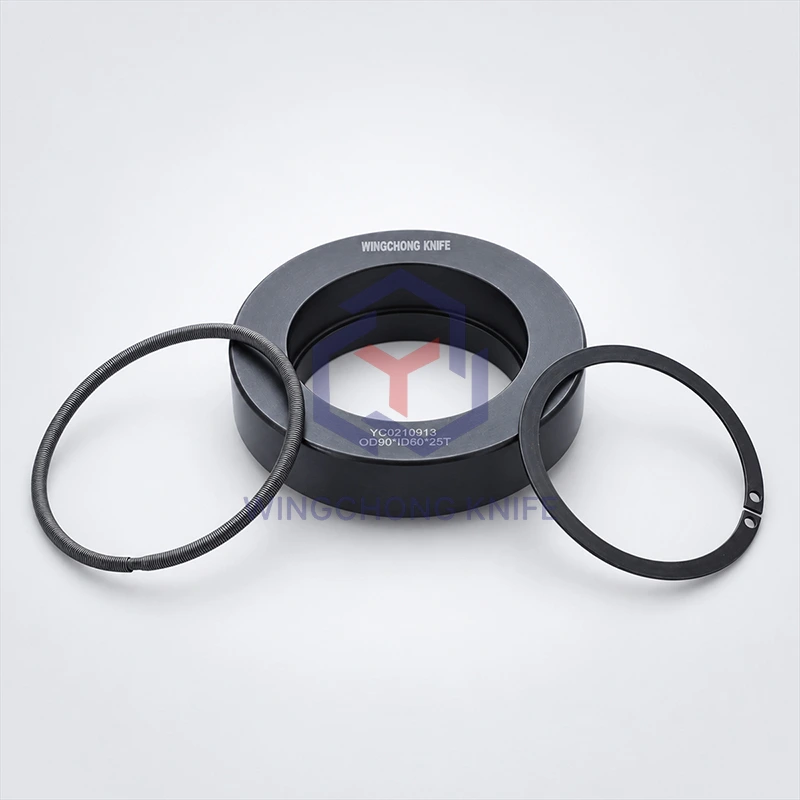

Each holder is supplied with a spring and snap ring. Spring specifications can be selected according to the material being processed and the required cutting pressure.

Key Features

  • Self-locking ball mechanism for secure knife positioning

  • Automatic locking engagement during machine operation

  • High-strength special steel construction

  • Black oxide finish for improved corrosion and wear resistance

  • Supplied with spring and snap ring

  • Designed for dished knives and shear slitting systems

  • Standard sizes available

  • Custom designs manufactured according to drawings or machine specifications

  • Replacement locking components and springs available

Self-Locking Ball Mechanism

The key feature of this knife holder is its self-locking ball mechanism.

When the machine starts operating, the locking mechanism automatically engages to help secure the knife holder on the shaft. This provides reliable knife positioning and helps reduce the risk of unintended holder movement during operation.

The self-locking design is particularly useful for slitting systems where stable knife positioning and operational safety are important.

The locking and unlocking directions should be correctly followed according to the specific holder and machine configuration.



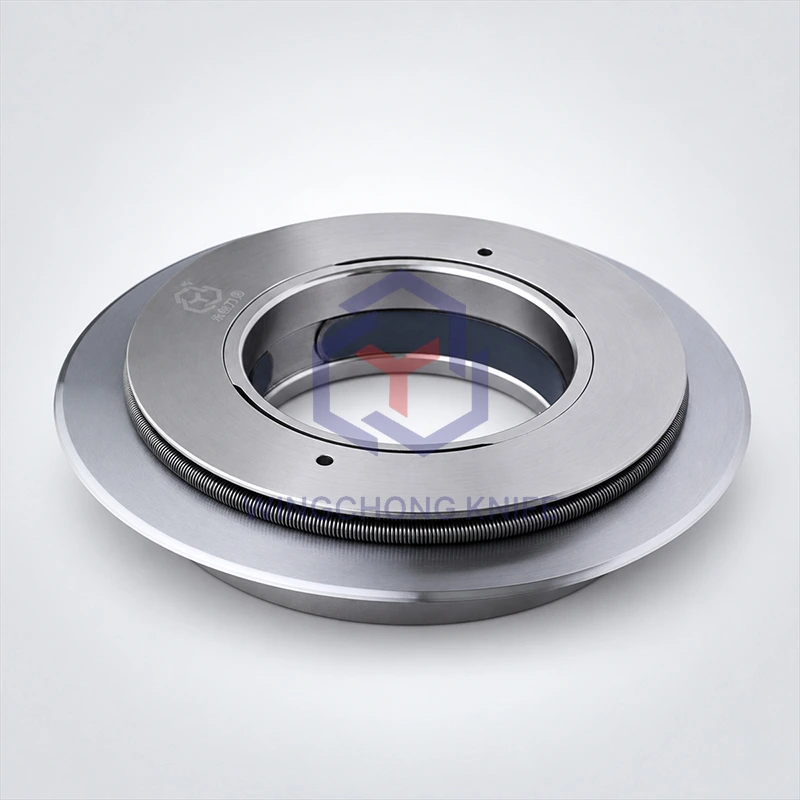

 Knife Holders

Spring Configuration & Cutting Pressure

The Self Locking Knife Holder is supplied with a spring and snap ring. The spring controls the cutting pressure applied between the upper dished knife and the bottom knife.

Spring selection can be adjusted according to:

● Spring length

● Wire diameter

● Operating characteristics

● Material type

● Material thickness

● Required cutting pressure

Correct spring selection helps maintain stable contact between the dished knife and bottom knife and supports consistent shear cutting performance.



Dished Knife & Shear Slitting Compatibility

Self Locking Knife Holders are designed to support dished knives as part of a complete shear slitting unit.

The upper knife holder and dished knife work against the bottom knife mounted on the bottom shaft. Controlled cutting pressure between the upper and bottom knives produces precise and stable shear cutting.

The system is suitable for processing:

● Paper and paperboard

● Aluminum foil

● Plastic films

● Metal films

● Flexible laminates

● Adhesive materials

● Labels

● Nonwoven materials

The appropriate dished knife geometry and steel grade should be selected according to the material and cutting conditions.

Custom Knife Holder Manufacturing

As a custom knife holder manufacturer, WINGCHONG KNIFE can manufacture Self Locking Knife Holders according to customer drawings, samples, machine specifications, and application requirements.

Customization options include:



Outer Diameter Inner Diameter Thickness
62 25 40
75 30/40 40/50
100 45/60 65/70/75
105 45/60 65/70/75
130 60/80 100
150 100 120
Material: chrome-alloyed (1.5 % Cr)



● Holder dimensions

● Shaft mounting dimensions

● Knife mounting configuration

● Ball-locking mechanism

● Spring specifications

● Snap-ring configuration

● Material and surface treatment

● Dimensional tolerances



Custom manufacturing is suitable for OEM replacement parts, machine builders, distributors, and industrial slitting users.

Replacement Parts & Maintenance Support

WINGCHONG KNIFE supplies replacement components for Self Locking Knife Holders, helping customers maintain reliable slitting performance.

Available replacement parts include:

● Springs

● Seeger rings

● Locking balls

● Eccentric rings

● Other locking mechanism components

Regular inspection of the locking mechanism, knife seating area, spring, and retaining components is recommended. Excessive wear in the knife seating area may affect knife positioning and cutting consistency.



 Knife Holders

Complete Shear Slitting Unit

WINGCHONG KNIFE manufactures the main components of a complete shear slitting unit, including:

● Self Locking Knife Holders

● Dished Knives

● Bottom Knives

● Springs

● Seeger Rings

● Locking Components

● Related shaft components

Supplying matching components from one manufacturer helps ensure dimensional compatibility, reliable installation, and consistent system performance.



Applications

Self Locking Knife Holders are commonly used in:

● Slitter rewinders

● Rewinding machines

● Slitting machines

● Shear slitting systems

● Inspection tables

● Paper converting

● Flexible packaging

● Film and foil processing

● Label converting

● Nonwoven converting

Why Choose WINGCHONG KNIFE?

  • 01

    Custom Manufacturer: Manufactured according to drawings, samples, or machine specifications.

  • 02

    Self-Locking Design: Automatic ball-locking engagement helps maintain secure knife positioning during operation.

  • 03

    High-Strength Construction: Special steel construction with black oxide treatment provides improved wear and corrosion resistance.

  • 04

    Flexible Spring Options: Spring specifications can be selected according to material and required cutting pressure.

  • 05

    Replacement Parts Support: Springs, locking balls, Seeger rings, eccentric rings, and other components are available.

  • 06

    Complete Component Capability: Dished knives, bottom knives, and knife holders can be manufactured as a matched shear slitting system.
