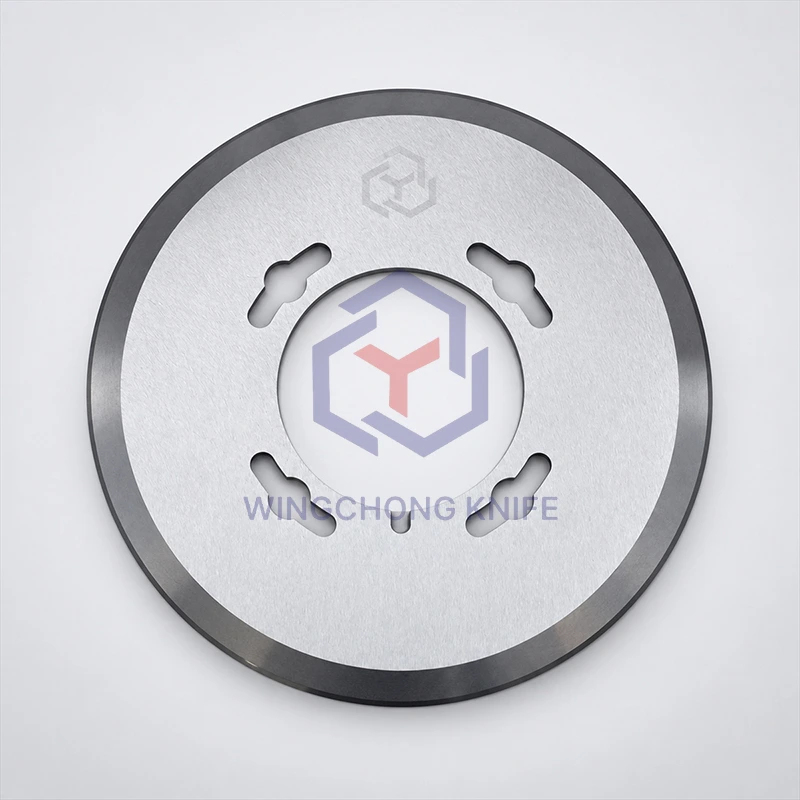

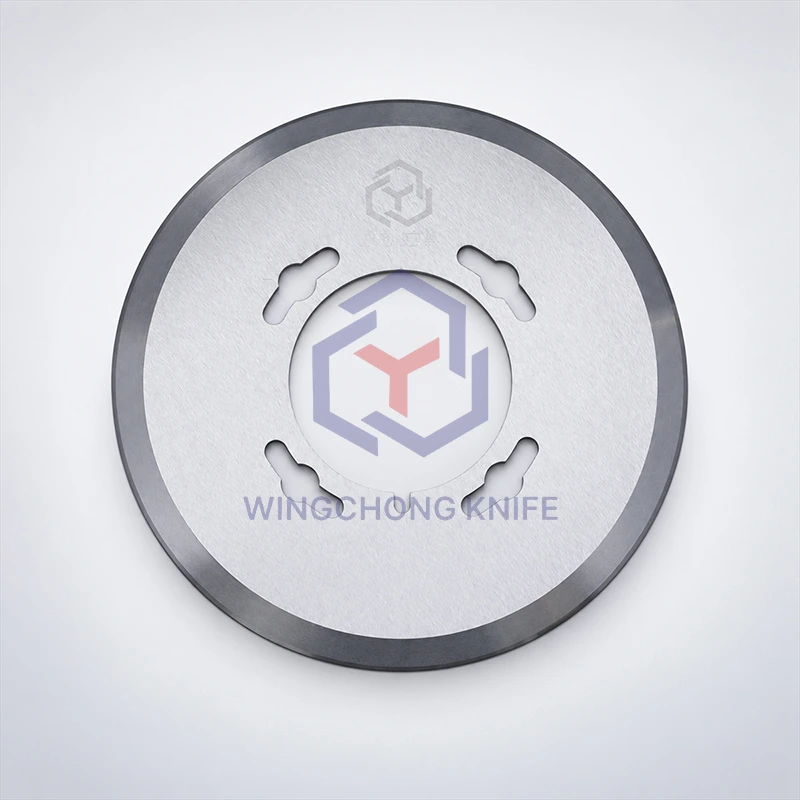

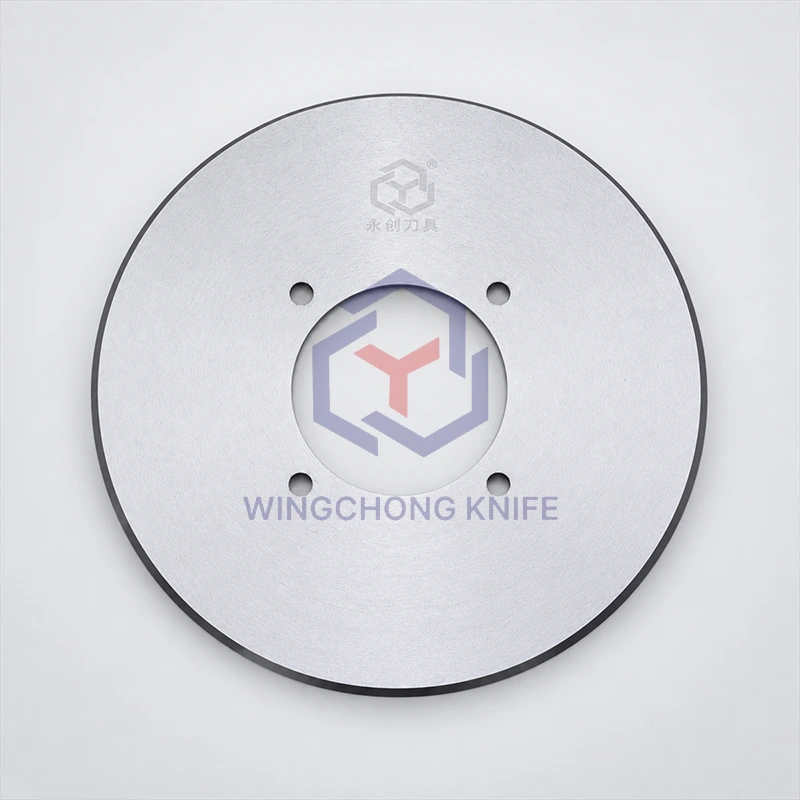

Hole Locking Flat Knives

Hole Locking Flat Knives are precision slitting knives designed with mounting holes, threaded holes, or locking configurations for secure installation on knife holders and slitting systems. They are suitable for pneumatic knife holders, shear slitting systems, slitting machines, rewinders, and converting equipment.
Different hole configurations, including round holes, slotted holes, and keyway holes, are available to meet different mounting and machine requirements. These knives provide stable cutting performance for high-speed slitting of paper, paperboard, plastic films, aluminum foil, laminates, flexible packaging, and nonwoven materials.
A mirror-polished finish is available to reduce surface roughness and material or adhesive buildup during slitting. It is particularly suitable for adhesive materials, laminates, woven fabrics, and nonwoven materials, helping maintain a cleaner cutting edge and reduce dust.
As a custom slitter knife manufacturer, WINGCHONG KNIFE can manufacture hole locking flat knives with customized dimensions, hole configurations, keyways, edge geometries, materials, surface finishes, and tolerances according to your machine and mounting requirements.

Key Features

  • Hole locking design for secure knife installatio

  • Round, slotted, threaded, and keyway hole configurations

  • Suitable for pneumatic and shear slitting systems

  • Designed for high-speed precision slitting

  • Mirror-polished finish available for demanding materials

  • Reduced material and adhesive buildup

  • Customized mounting dimensions and edge geometries

Materials We Can Slit

Hole Locking Flat Knives are suitable for:

  • Paper and paperboard

  • Plastic films

  • Aluminum foil

  • Flexible packaging

  • Laminates and composite materials

  • Adhesive tapes and labels

  • Woven and textile materials

  • Nonwoven materials

  • Other specialty web materials

Custom Hole Locking Flat Knife Manufacturing

WINGCHONG KNIFE provides custom hole locking flat knives for different machines, knife holders, and mounting systems.

Customization options include:



Outer Diameter Inner Diameter Thickness
90 60 1,2
105 65 / 70 / 75 1,2 / 1,5 / 2
150 80 / 120 1.5 / 2.5
180 70  3/5
190 75 1.5 / 2 / 3
200 65 / 70 / 80 / 90 2 / 2.5 / 3 / 5
220 80 / 90 / 120 / 180  3/5
Material: 1.2379、1.3343、1.5%Cr、chrome alloyed (1.5% Cr)、high chrome alloyed tool steels (12% Cr) and powder high speed steels



● Knife diameter and thickness

● Mounting and threaded holes

● Round, slotted, or keyway holes

● Hole position and spacing

● Edge geometry and bevel angle

● Knife material and hardness

● Precision grinding and mirror polishing

● Surface treatments and coatings

● Dimensional and geometric tolerances



Production can be based on your technical drawings, existing knife samples, holder dimensions, or machine specifications.

Slitting System Compatibility

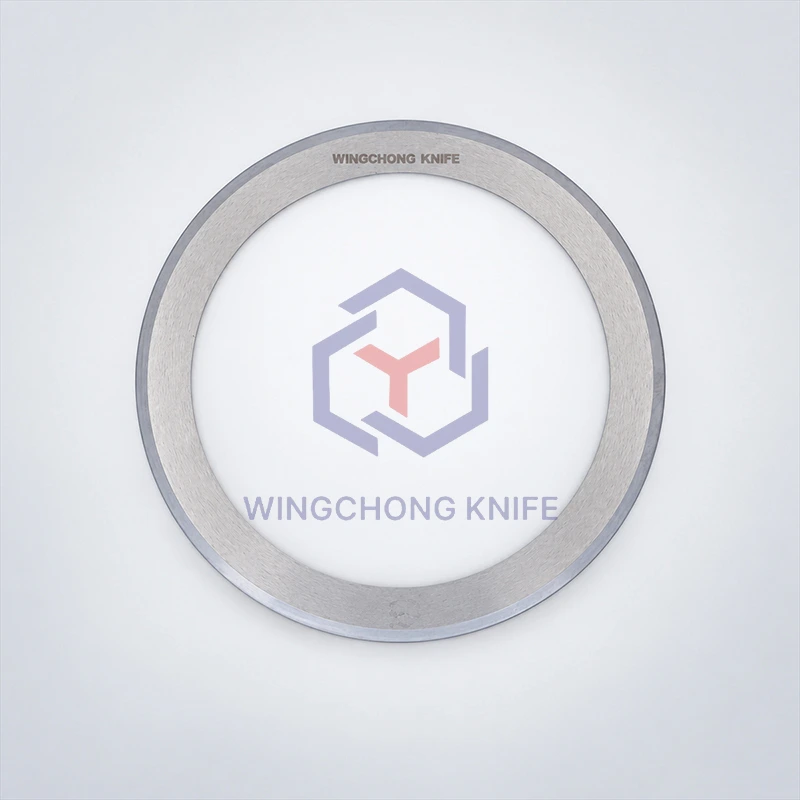

Flat Knives

These knives are designed for use with pneumatic knife holders, shear slitting systems, slitting machines, slitter rewinders, and converting equipment.

The mounting hole and locking configuration can be manufactured according to your existing knife holder and machine setup to ensure proper installation and reliable operation.

Applications

Flat Knives

Hole Locking Flat Knives are commonly used in:

● Flexible packaging converting

● Paper and paperboard converting

● Film and foil slitting

● Label and adhesive material processing

● Nonwoven and textile converting

● Laminate slitting

● Rewinding and web processing

● High-speed industrial slitting
